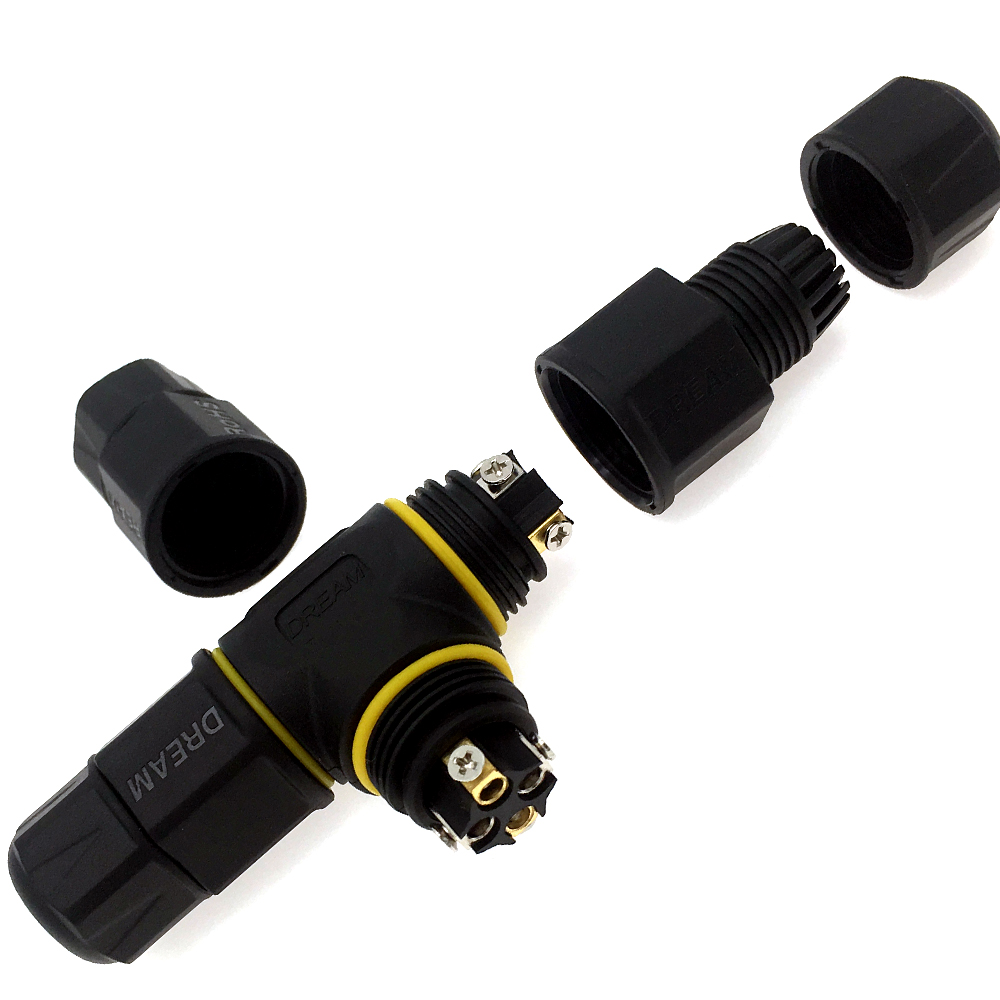

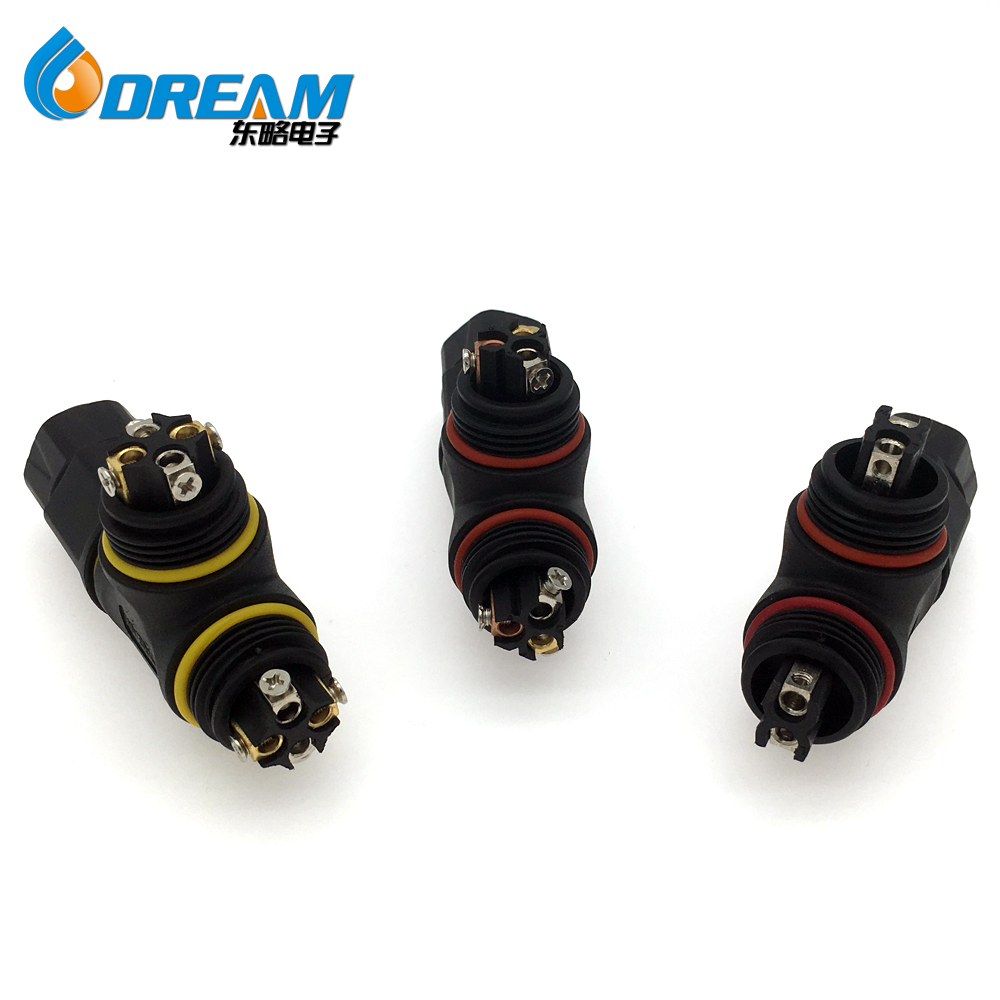

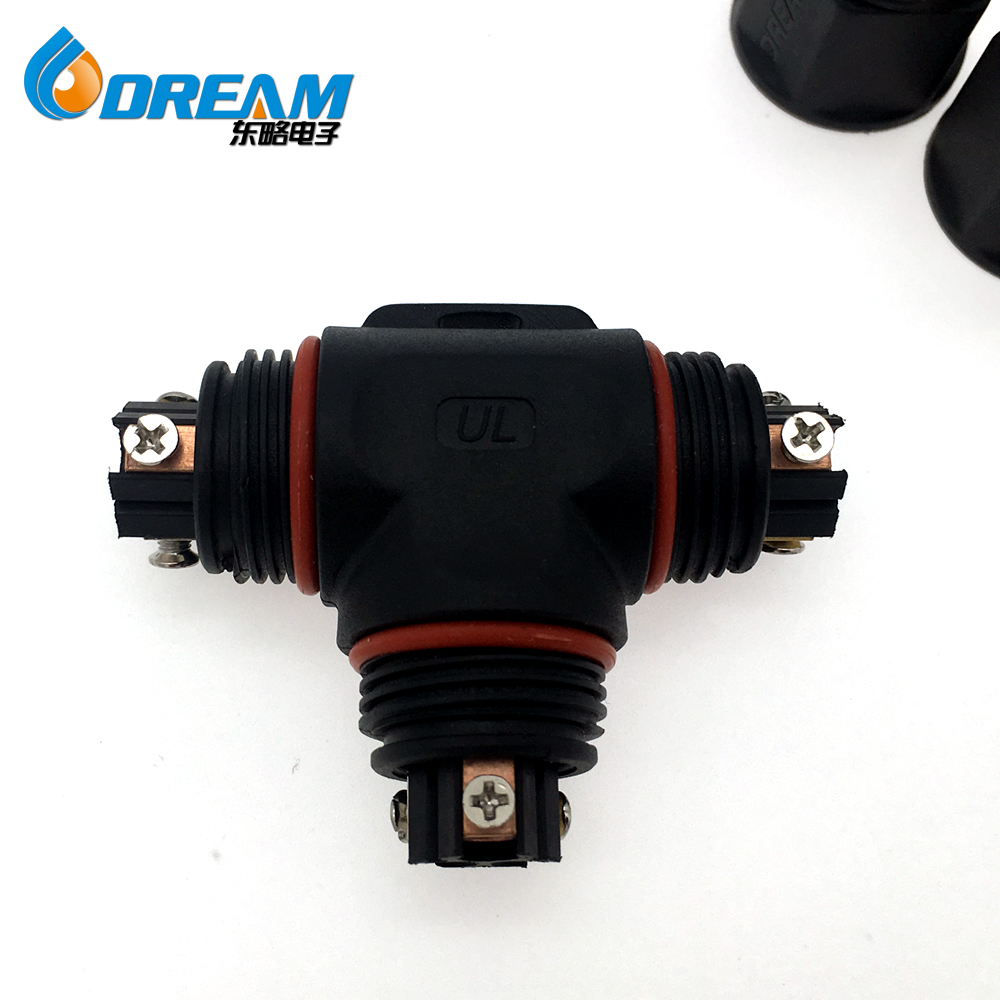

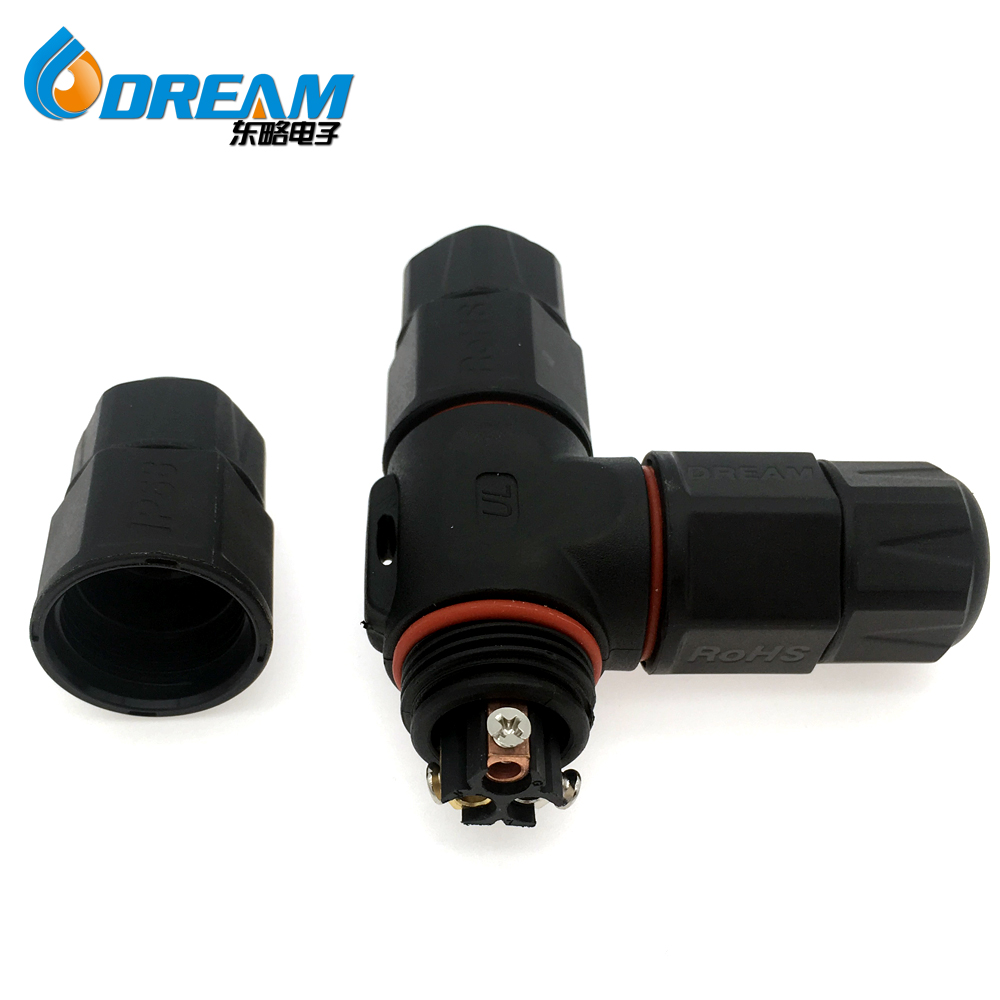

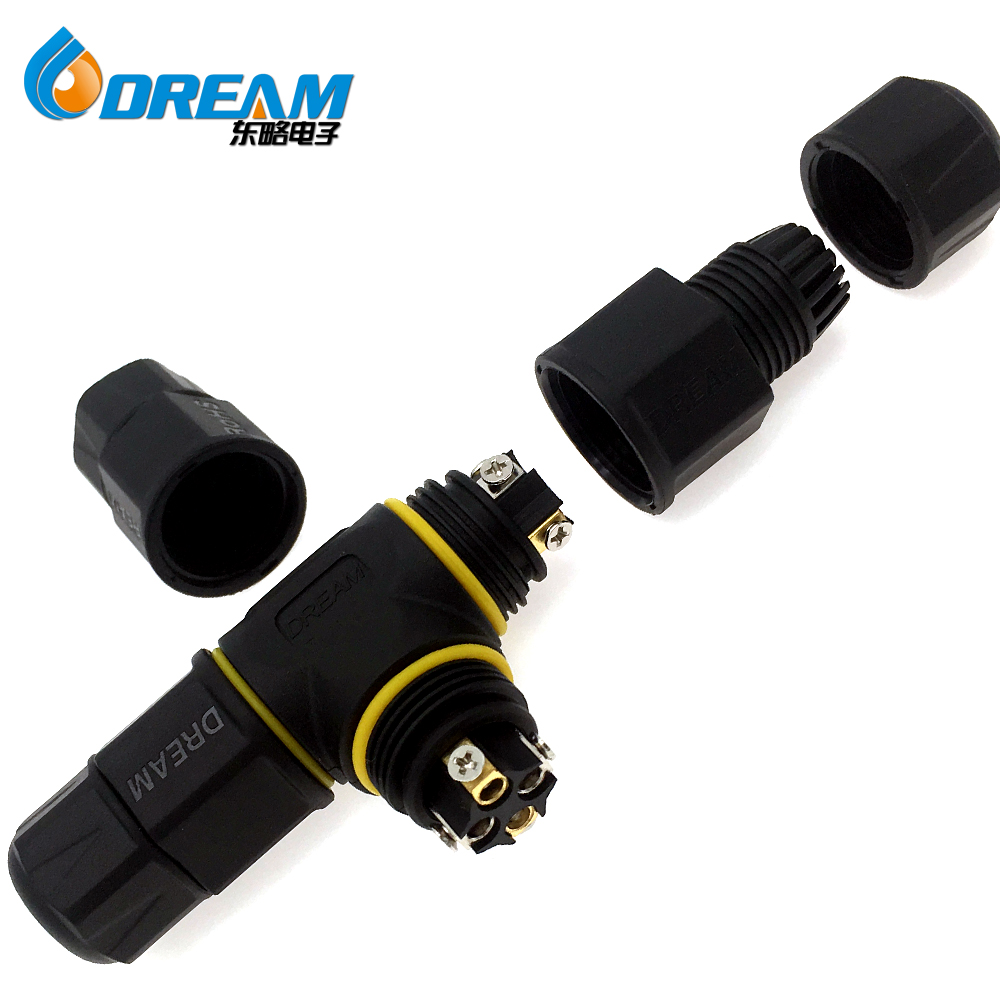

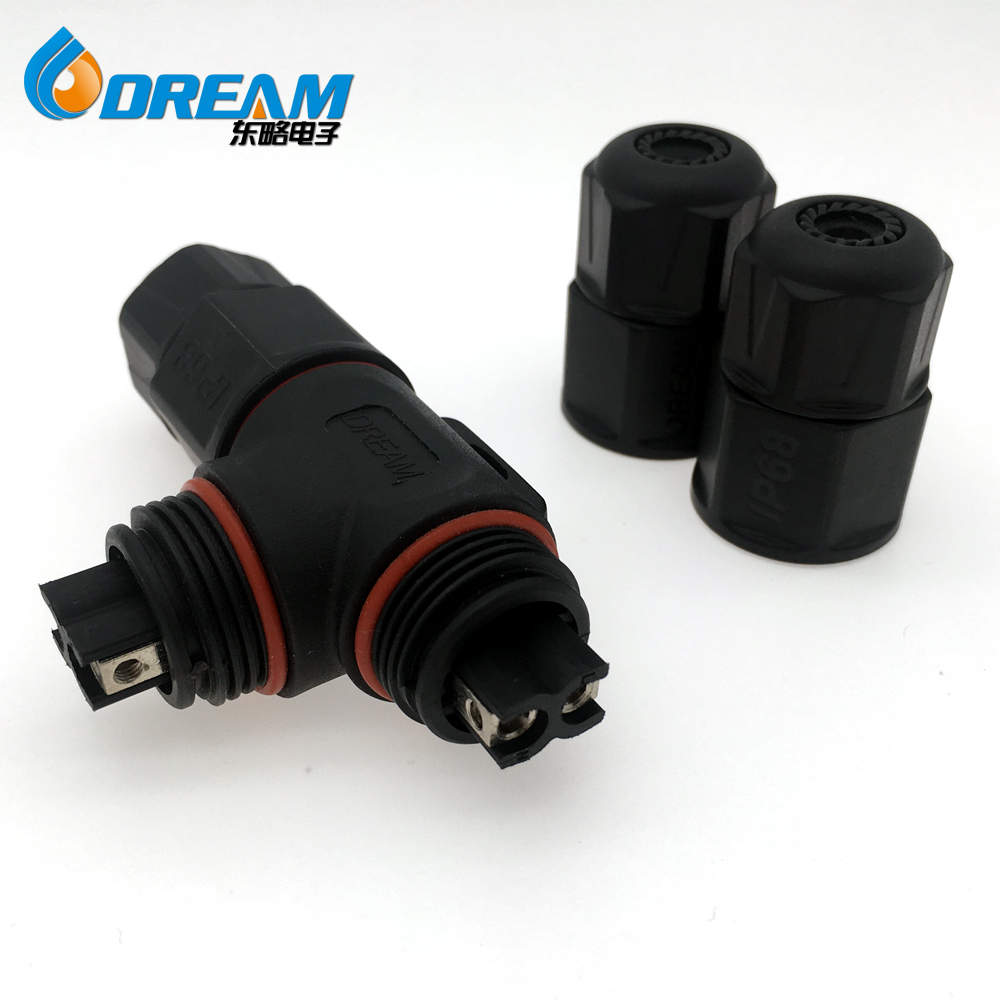

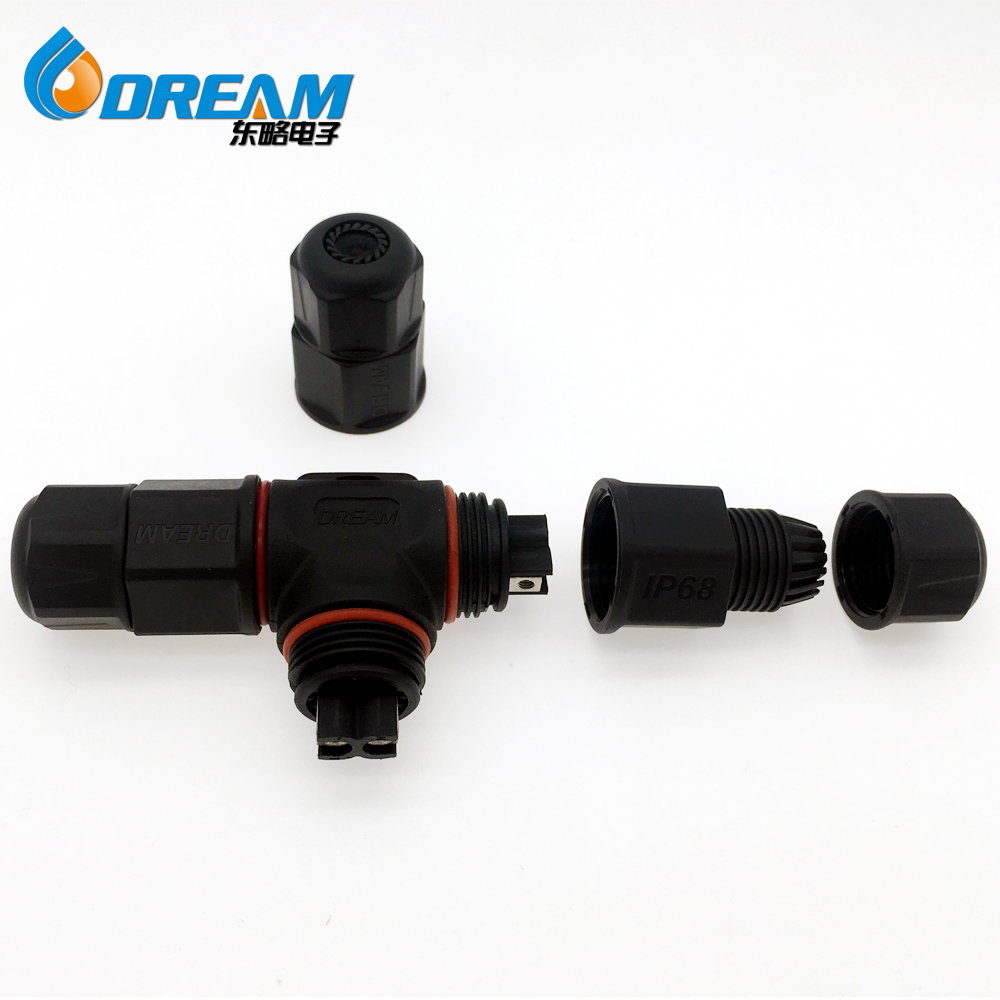

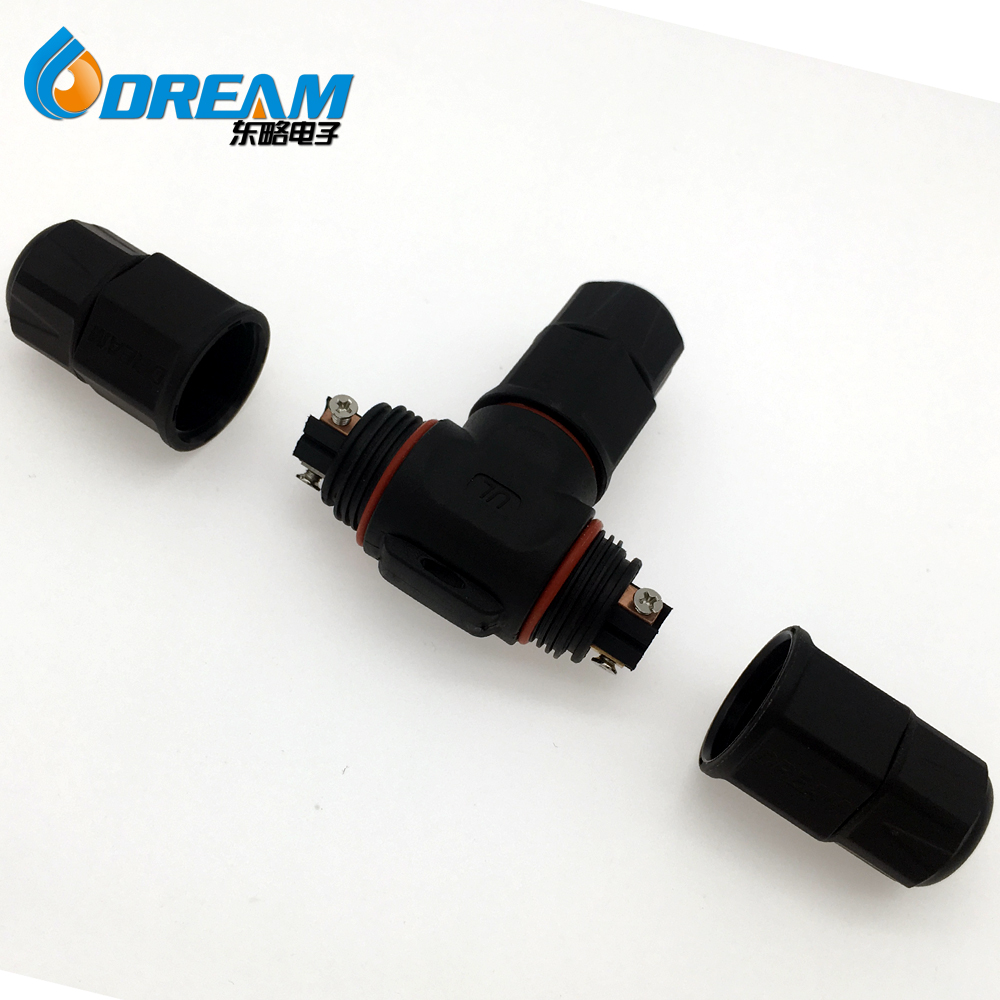

4pin IP68 electrical cable joint waterproof T connector outdoor jointing electrical waterproof connector

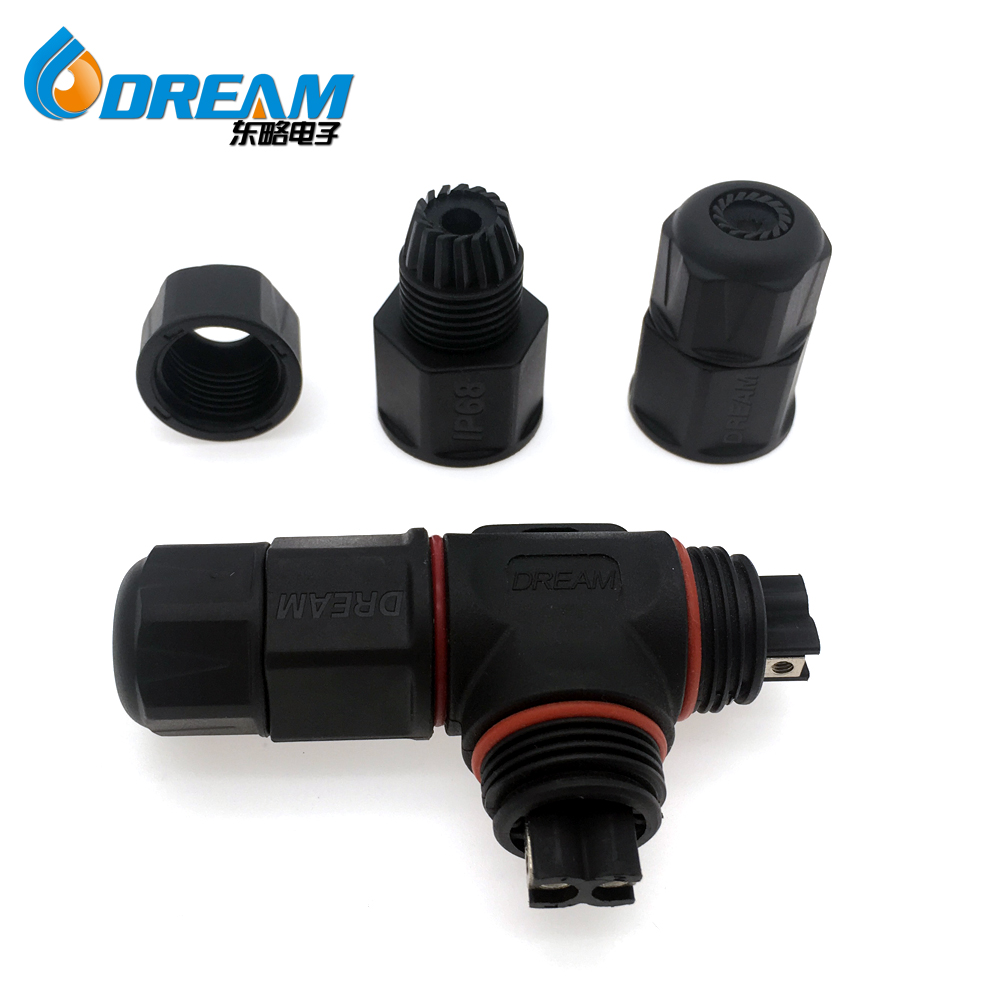

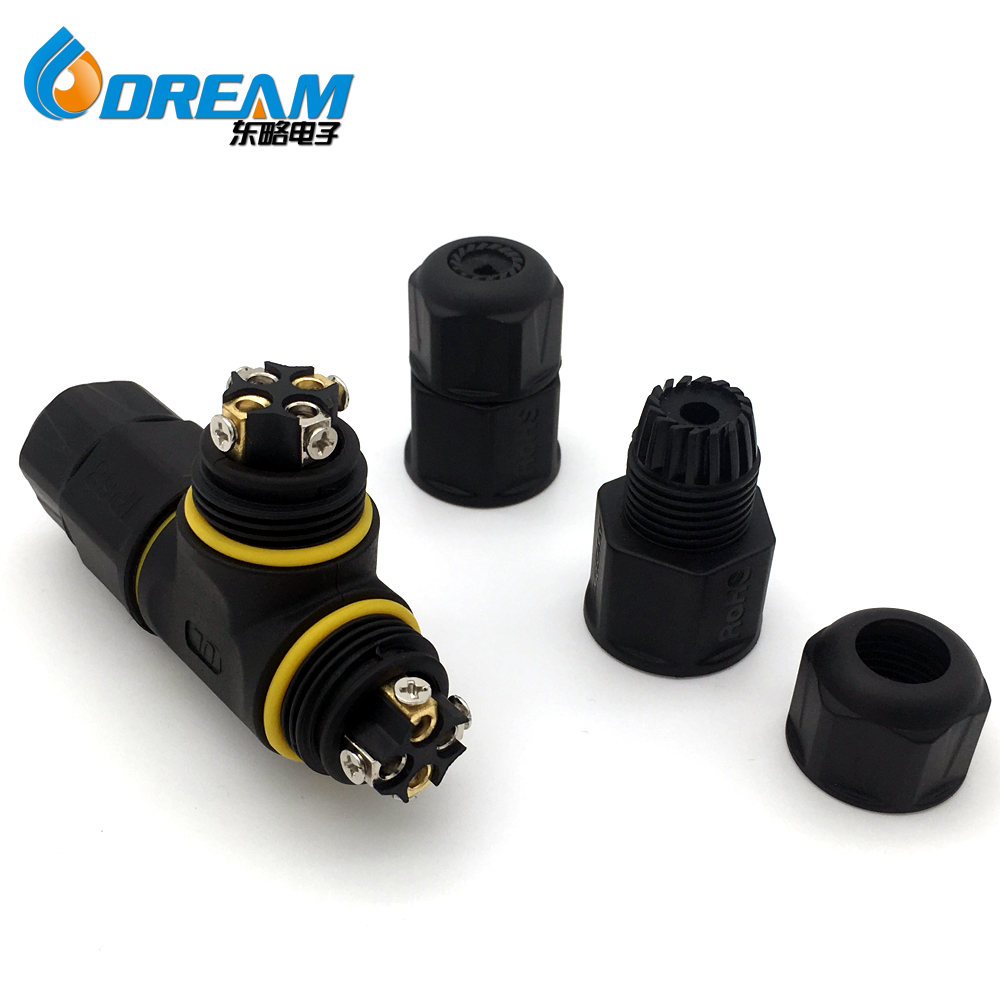

M20 IP68 T Shape Screw Waterproof Connector

Product Modle： DR-T15-M20

Contact Me Now

Email：sales@cnszdst.com

Can not see? Click to change verification code

4pin IP68 electrical cable joint waterproof T connector outdoor jointing electrical waterproof connector
Screw threaded three ways assembly, simple in using, convenient in installation;
Brass plating nickel finish, high-strength corrosion resistance and electrical conductivity could effectively response to thetemperature rise changes caused by the current;
Unique tablet design, the wire need no tin plating, then crimping will be more reliable, and will not damage the copper wire structure
Nylon material, stable electrical performance, high-strength resistance to pressure, anti-heat, anti-explosion, and corrosion;
Increases the design flexibility: the use of connectors gives engineers greater flexibility in designing and integrating new
products, as well as in composing systems with components.

Parameters
Cable Specification	<2.5mm2 (2pin)
Cable range	6-10mm
Pins Material	Copper/Copper alloy(Gold plating/Nickel plating)
External Mold Material	PVC, TPU
Operation Rating	PA66+30%GF, -40℃ ~ +125℃
Working temperature	-25℃ ~ +105℃
Storage temperature	-25℃ ~ +80℃
Protection Class	IP68

waterproof connector

Contact Cores	Rated Current	Rated Voltage	Contac tResistance	Insulation Resistance	Protective Level	Wire Spec1f1cat1ons	Wire Diameter
2	20A	250V AC	10M Ω	20M Ω	IP68	≤2.5 mm2	6-10mm
3	20A	250V AC	10M Ω	20M Ω	IP68	≤1.5 mm2	6-10mm
4	20A	250V AC	10M Ω	20M Ω	IP68	≤1.5 mm2	6-10mm
Orher parameters Operating Rating ：PA66: -40～105°C Mechanical Life ：1500 Connection mode ：Nut Type
