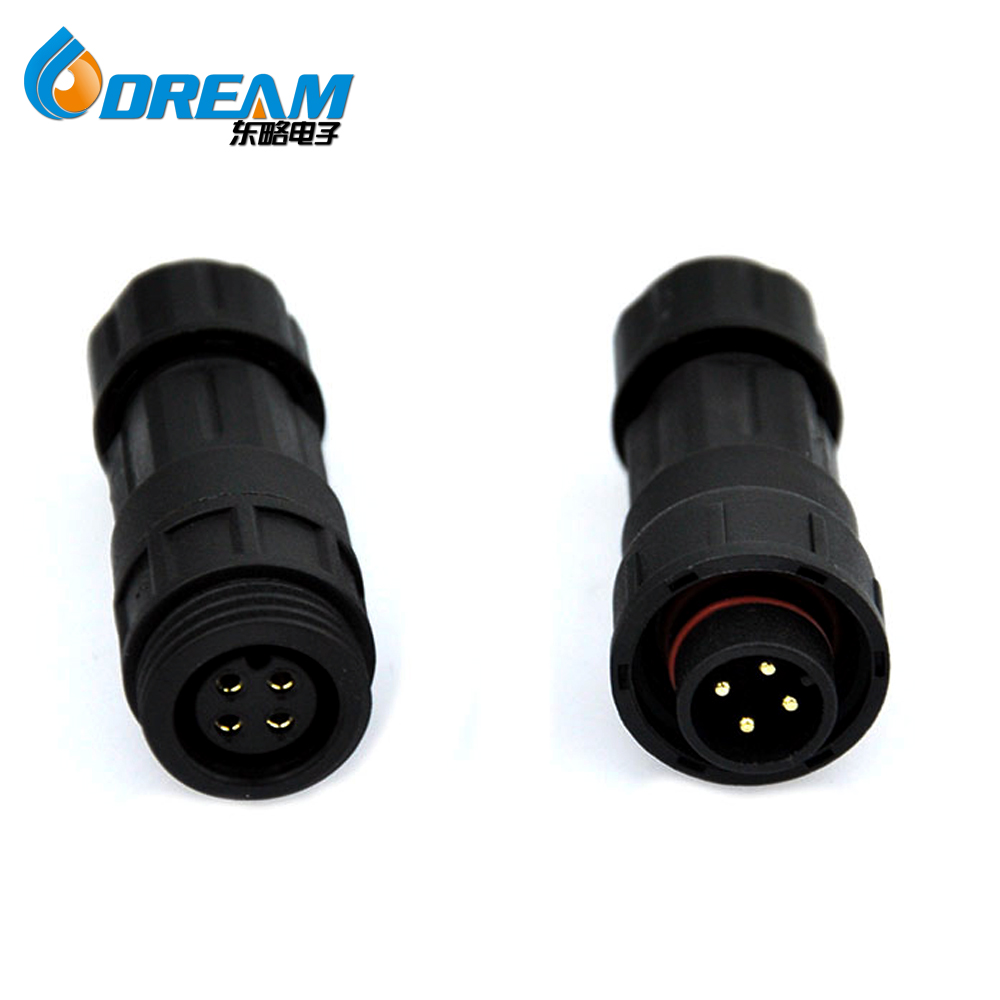

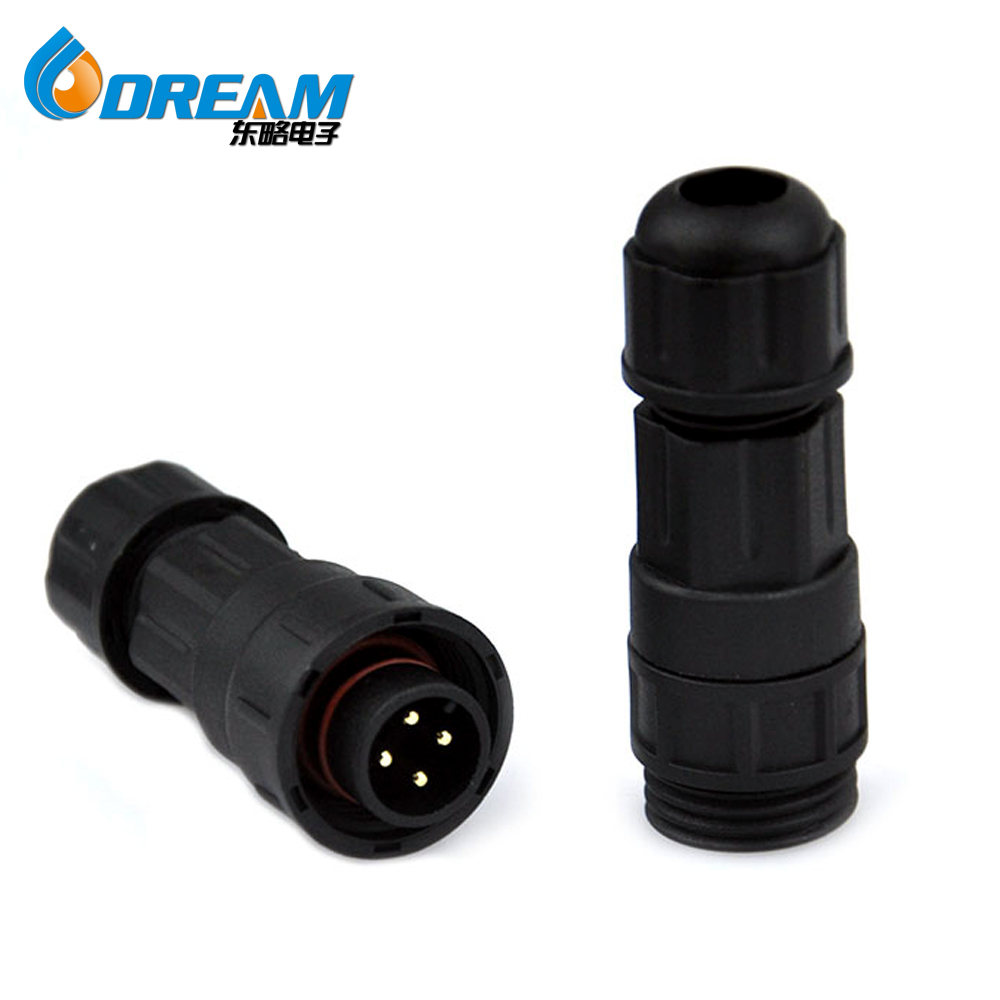

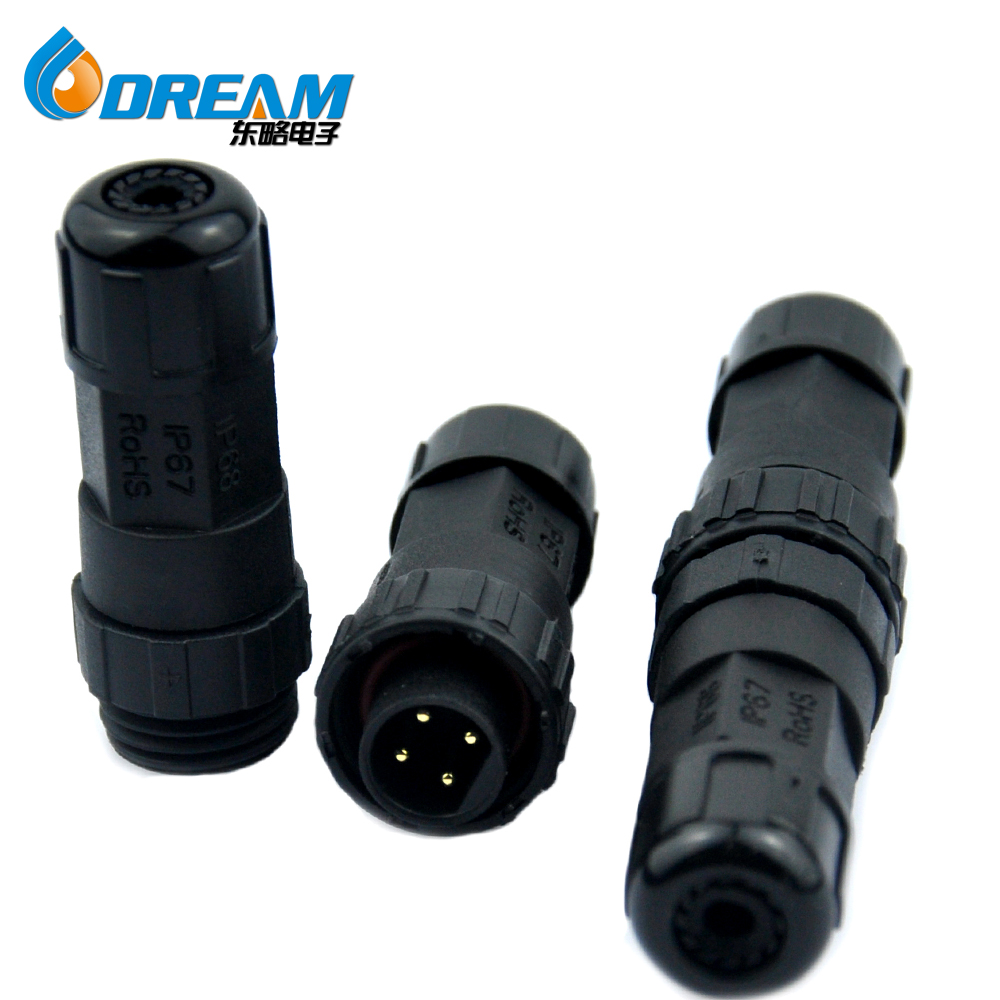

IP68 Plastic M16 Mini Screw Type 4 Pin Male Female Power Connector 4 Pin Waterproof Connector
Quick lock and screw threaded docking assembly, simple to use and convenient installation;
Integrating current and signal transmission in one of the multifunctional integrated circular connector;
The material of products in nylon fiber grealy improves product durability and safety;
The pins with gold-plated ensure the conducting performance's stability and security;

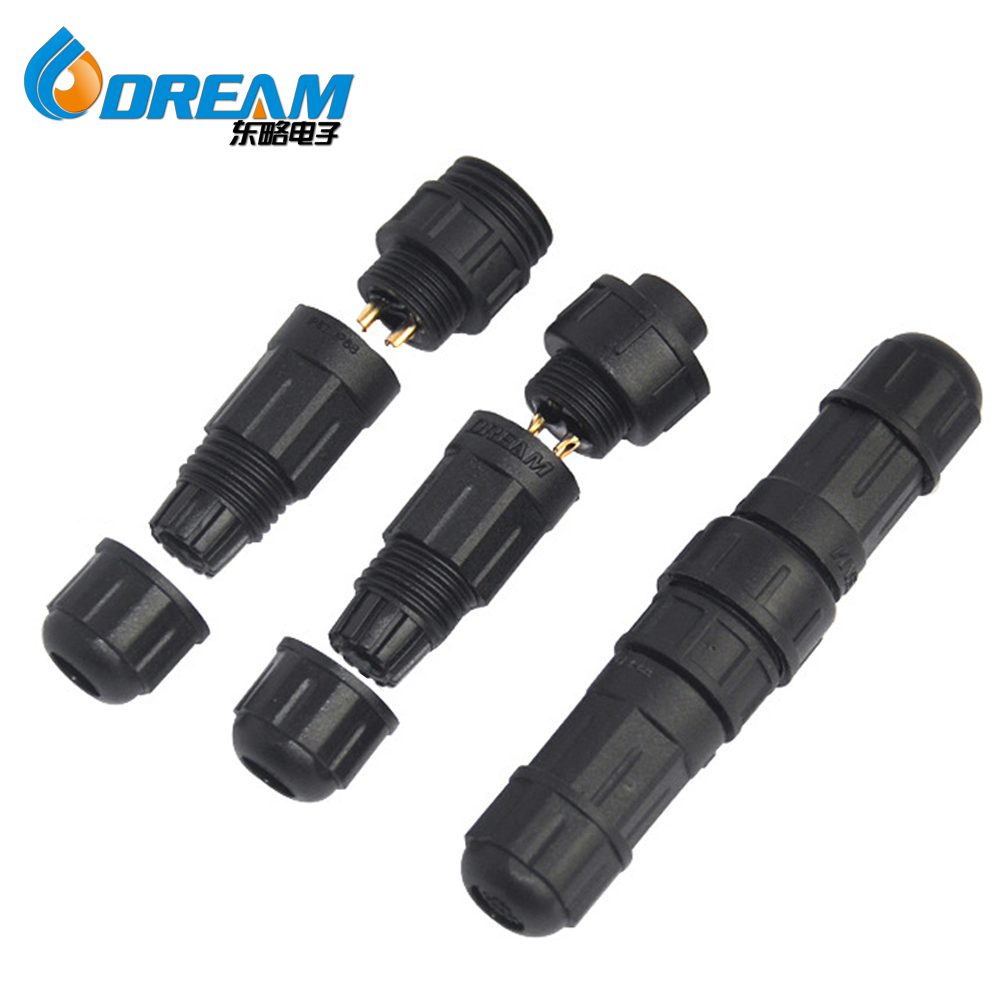

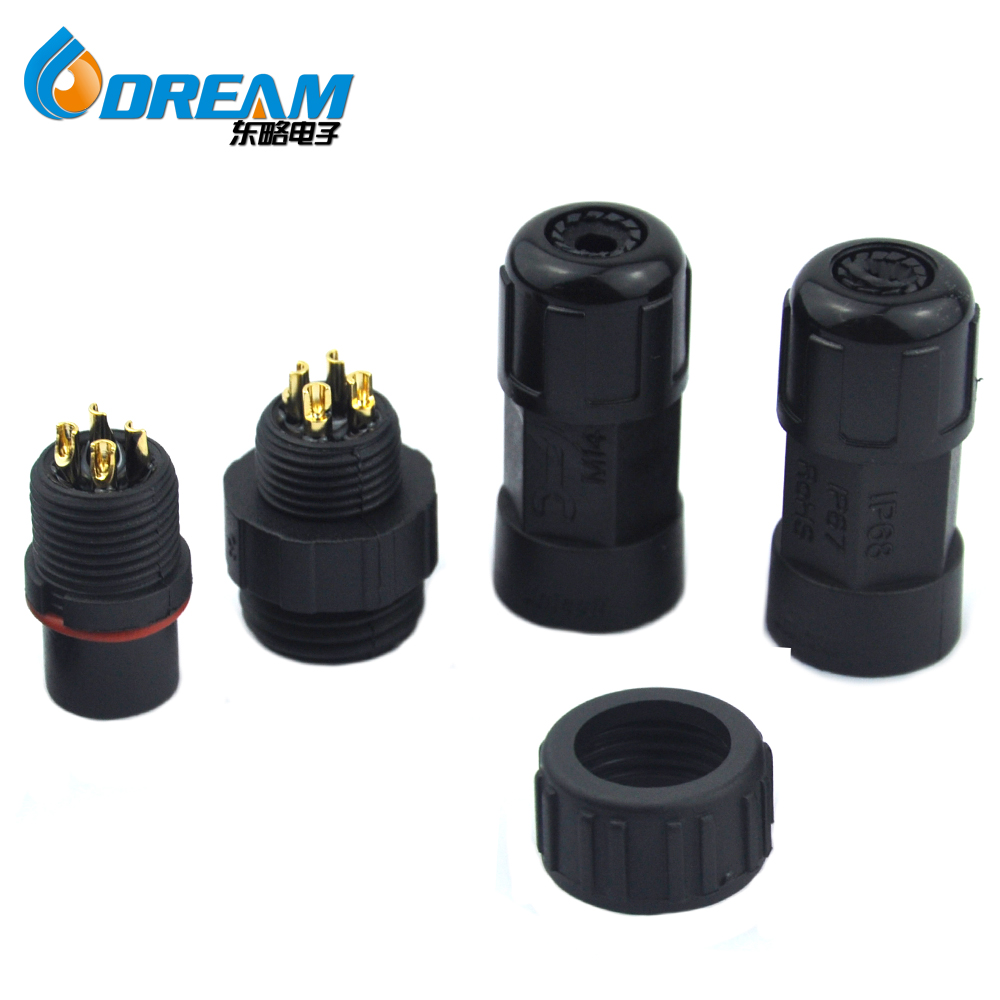

Combined structure, the connector can be parted into different components. Customers can just purchase the connector, then assemble and weld it according to the demand.
Mainly used for outdoor display screens and other upscale products.

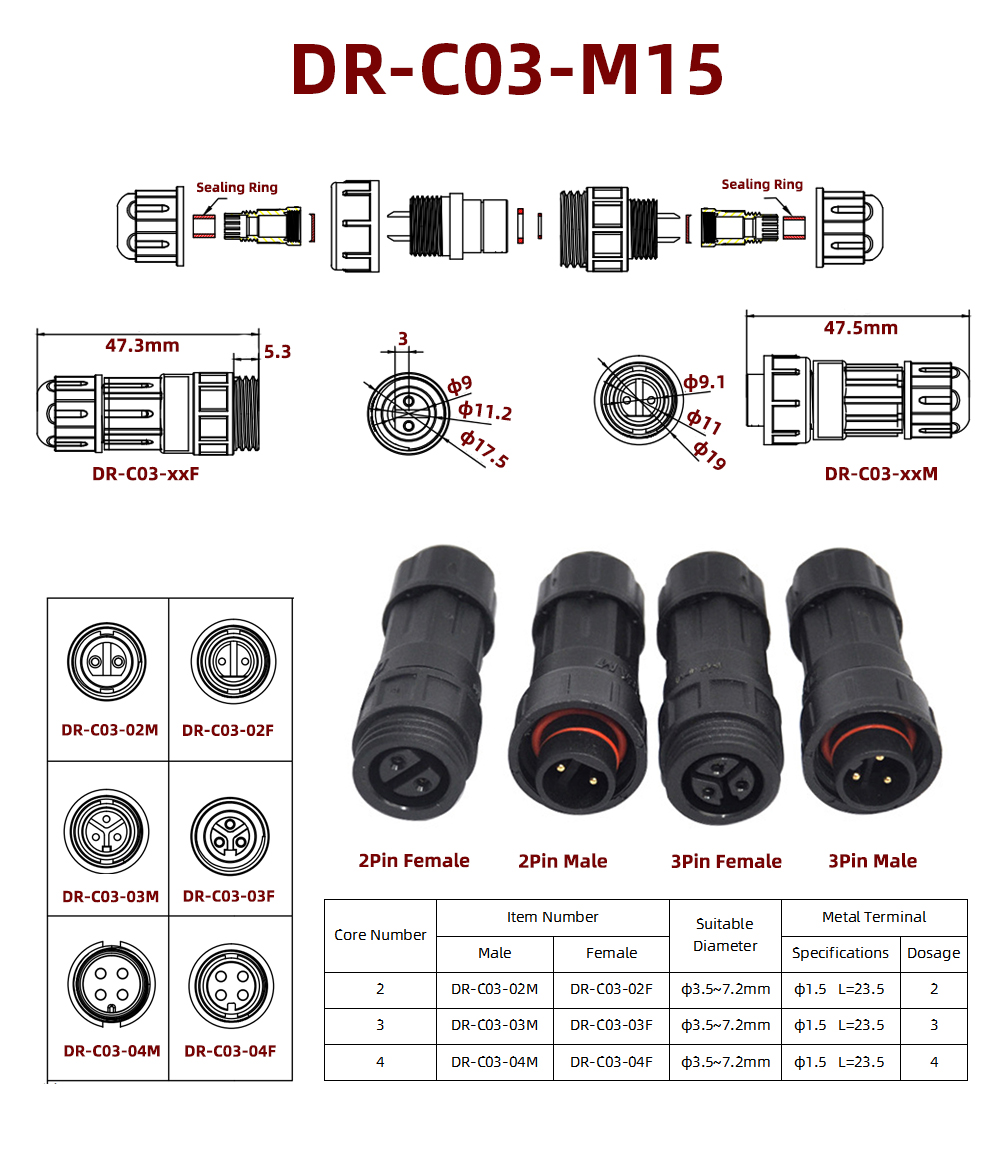

Male Size	Φ19*47.3mm
Female Size	Φ19*47.5mm
Contact Cores	3pin
Male Pin Diameter	Φ1.5mm
Male Pin Material	Copper/Copper Alloy (Gold plating/Nickel plating)
Over-Mold Material	PA66
Insulator Material	PA66+30% fibre
Wire Specifications	28AWG---14AWG
Wire Diameter	Φ3.5-Φ7.2

waterproof connector

機械性能(Mechanical Property)
產品尺寸(Size)	公頭 (Male)	母頭 (Female)	成品 (F1n1shed Product)
產品尺寸(Size)	φ19*47.3mm	φ19*47.5mm
接觸對數(Contact Cores)	2Pin~4Pin	5Pin~6Pin	2+4Pin	2+6 Pin
公針直徑(Male Pin Diameter)	φ1.5mm	φ1.0mm	2φ1.5+4φ0.8mm	φ10.+4*φ0.6mm
公針材質(Male P in Material)	銅／銅合金 (鍍金/鍍鎳） Copper/Copper Alloy (Gold Plating/ Nickel Plating)
母針材質(Male Pin Material)	銅／銅合金（鍍金/鍍鎳） Copper/Copper Alloy (Gold Plating/ Nickel Plating)
外模材質(Over-Mold Material)	PA66
絕緣體材質(Insulator Material)	PA66+30%纖
適用線纜規格(Wire Spec1f1cat1ons)	28AWG---14AWG
用線纜外徑(Wire Diameter)	φ3.5 ~ φ7.2
防護等級(Protective Level)	IP68
耐溫環境(Tempreture Env1roment)	-40℃ ~ 125 ℃
插撥次數(Plug/Unplug Durab山ty)	1000
電氣性能(Electrical Property)
額定電流(Rated Current)	10A	4.0A	10A+2.5A	4A+2A
額定電壓(Rated Voltage)	250V	250V	60V	60V
測試電壓(Test Voltage)	1000V	1000V	500V	500V
接觸電阻(Contact Resistance)	10 MΩ	10 MΩ	10 MΩ	10 MΩ
絕緣電咀(Insulation Resistance)	200 MΩ	200 MΩ	200 MΩ	200 MΩ
